Setup Software Development Environment for tech11 Product Development

SOFTWARE

  • JDK 1.8
  • maven (latest)
  • Docker (latest)

IDEs

  • eclipse (distribution Eclipse IDE for Enterprise Java Developers) https://www.eclipse.org/downloads/packages/release/2018-12/r/eclipse-ide-enterprise-java-developers
  • Camunda Modeller https://camunda.com/download/modeler/

Setup eclipse

  • add server JBoss Community -> Wildfly (all required plugins are downloaded automatically)
  • Link standard JRE to JDK1.8

Servers

  • Wildfly (latest) http://wildfly.org/downloads/
  • Camunda BPM Wildfly Distribution https://camunda.org/release/camunda-bpm/wildfly10/7.10/

Databases and dependencies

Run H2 (tmp - will be replaced by an Docker environment)

Use the h2 jar file from <WILDFLY_HOME>\modules\system\layers\base\com\h2database\h2\main and copy it to a directory of your choice

cd srv\db
start java -jar h2-1.3.168.jar
cd ..\..

Docker depenencies

To run mongo db, keycloak (with database postgres) and mysql (to replace the h2 above in the future). checkout docks project and go to tp(third party)

run

docker-compose up -d

Configure tech11 Insurance Platform product config (Capitol Insurance Limited)

git clone git@bitbucket.org:techeleven/data-repo-capitol-versicherung.git

in the following just named as directory data-repo

Configure Servers in eclipse

  • Wildfly default setup (new server, …) - link server to wildfly directory image

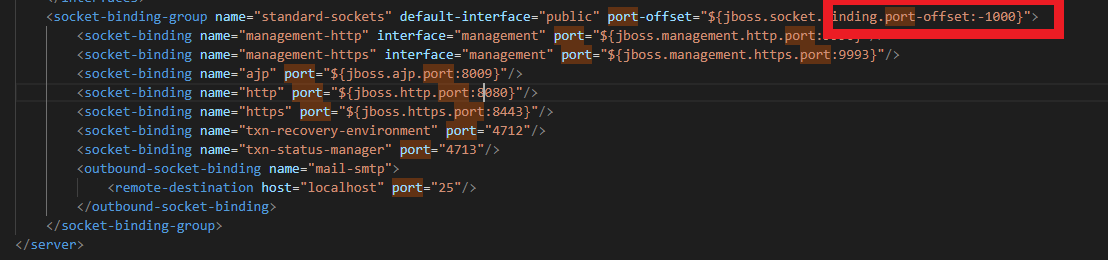

  • Camunda setup (new server, …) - link server to camunda directory ** Change the Camunda server port: \server\wildfly-10.1.0.Final\standalone\configuration\standalone.xml

    The port-offset is reduced for 1000 -> Camunda server is running on port 7080 ![image](https://user-images.githubusercontent.com/47417483/52415027-3c0f6f80-2ae6-11e9-86ce-0f744cb27abd.png)

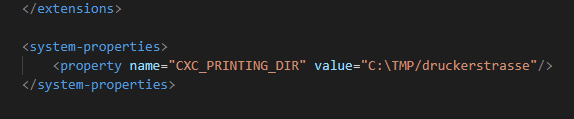

** Add settings for some special user tasks from the BPM processes at the Camunda standalone.xml add system properties to standalone.xml

<system-properties>
    <property name="CXC_PRINTING_DIR" value="C:\TMP/druckerstrasse"/>
</system-properties> ![image](https://user-images.githubusercontent.com/47417483/52772321-77ef8b00-3038-11e9-8a47-507edf45f350.png)

** Add settings for the microservice at the Wildfly standalone.xml

<system-properties>
    <property name="hero.root.dir" value="C:/Users/matthias/dev/hero"/>
    <property name="hero.repo.dir" value="${hero.root.dir}/data-repo"/>
    <property name="DOCS_TEMPLATE_DIR" value="${hero.repo.dir}/doc-templates"/>
    <property name="CALC_DIR" value="${hero.repo.dir}/product/calc"/>
    <property name="serviceRegistry.path" value="${hero.repo.dir}/service-registry.json"/>
    <property name="PRODUCT_DIR" value="${hero.repo.dir}/product"/>
    <property name="TARIFF_DIR" value="${hero.repo.dir}/product/tariffs"/>
    <property name="PARTNER_DIR" value="${hero.repo.dir}/partner"/>
    <property name="DOC_STORAGE_DIR" value="${hero.root.dir}/file-archive-system"/>
</system-properties>

Replace each “value” by your own location:


** Add datasources for the microservices at the Wildfly standalone.xml Datasources section add:

	<datasource jndi-name="java:jboss/datasources/ExampleDS" pool-name="ExampleDS" enabled="true" use-java-context="true">
		<connection-url>jdbc:h2:mem:test;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=FALSE</connection-url>
		<driver>h2</driver>
		<security>
			<user-name>sa</user-name>
			<password>sa</password>
		</security>
	</datasource>
	<datasource jta="true" jndi-name="java:jboss/datasources/AccountingRecordsDS" pool-name="AccountingRecordsDS" enabled="true" use-java-context="true">
		<connection-url>jdbc:h2:tcp://localhost/C:/Users/matthias/dev/hero/srv/db/accounting-record</connection-url>
		<driver>h2</driver>
		<security>
			<user-name>sa</user-name>
			<password>sa</password>
		</security>
	</datasource>
	<datasource jta="true" jndi-name="java:jboss/datasources/ClaimDS" pool-name="ClaimDS" enabled="true" use-java-context="true">
		<connection-url>jdbc:h2:tcp://localhost/C:/Users/matthias/dev/hero/srv/db/hero-ng</connection-url>
		<driver>h2</driver>
		<security>
			<user-name>sa</user-name>
			<password>sa</password>
		</security>
	</datasource>
	<datasource jta="true" jndi-name="java:jboss/datasources/NumberGeneratorDS" pool-name="NumberGeneratorDS" enabled="true" use-java-context="true">
		<connection-url>jdbc:h2:tcp://localhost/C:/Users/matthias/dev/hero/srv/db/hero-ng</connection-url>
		<driver>h2</driver>
		<security>
			<user-name>sa</user-name>
			<password>sa</password>
		</security>
	</datasource>
	<datasource jta="true" jndi-name="java:jboss/datasources/JournalDS" pool-name="JournalDS" enabled="true" use-java-context="true">
		<connection-url>jdbc:h2:tcp://localhost/C:/Users/matthias/dev/hero/srv/db/hero-ng</connection-url>
		<driver>h2</driver>
		<security>
			<user-name>sa</user-name>
			<password>sa</password>
		</security>

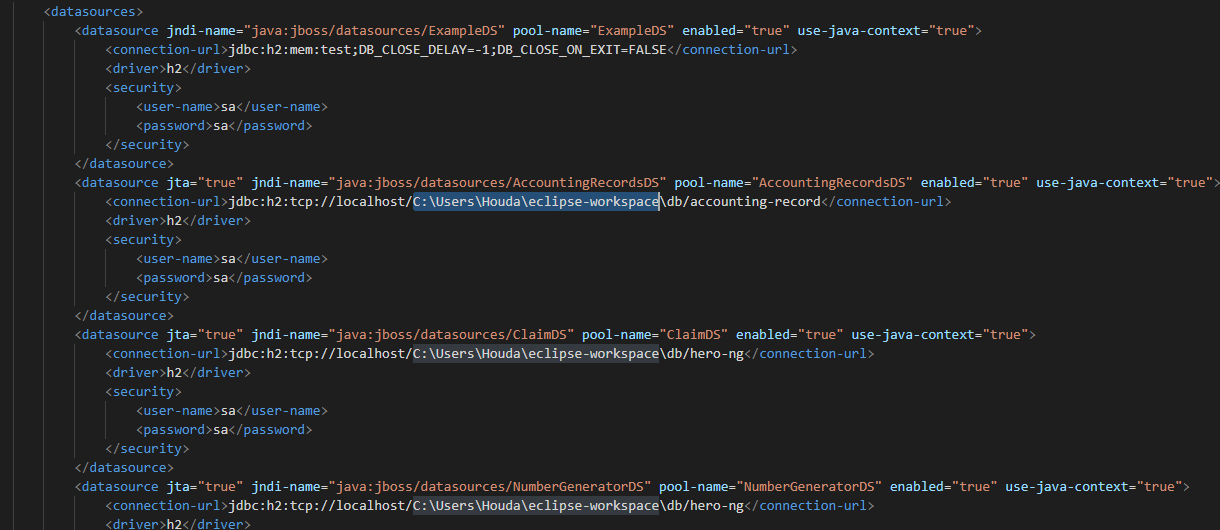

	</datasource> And change connection-url section to your own location: ![image](https://user-images.githubusercontent.com/47417483/52415664-ec31a800-2ae7-11e9-95d4-905c83528122.png)

Configure maven

  • Change /.m2/settings.xml
  • User the settings from SLACK channel and replace the id, username and password

Setup a project from BitBucket

  • Checkout the git sources to a SCM folder with scm\> git clone git@bitbucket.org:techeleven/policy.git
  • eclipse -> Import -> maven project (select scm folder)

Test on CLI (to verify the setup)

  • mvn clean package (should work)

Better use the scripts from the Jenkins pipeline

  • docker-compose run –rm -w /app maven mvn clean package -DskipTests
  • docker-compose up -d
  • docker-compose exec -T -w /app maven mvn -pl server verify -Djacoco.address=app

Run in eclipse

  • Add project (policy) to server
  • Start server

Test service

just enter into the browser http://localhost:8080/policy/api/products and see if you get a result portfolio is the old name for the policy module (have to be renamed)
